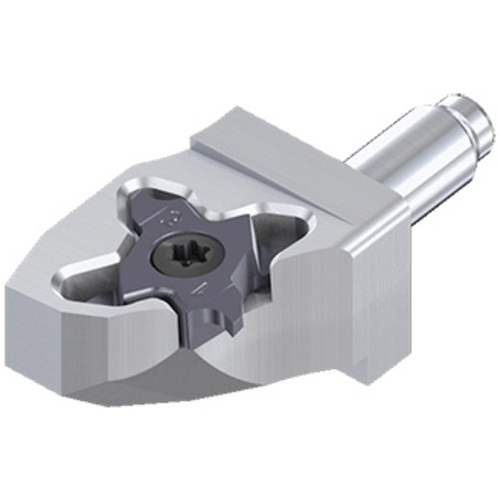

QC12-STCR18-Y
Grooving Toolholder ; 0.472″ Shank Height ; 0.472″ Shank Width ; 0.013″ CW Min. ; 1/8″ CW Max. ; 0.138″ Max Depth ; Right Hand ; Steel

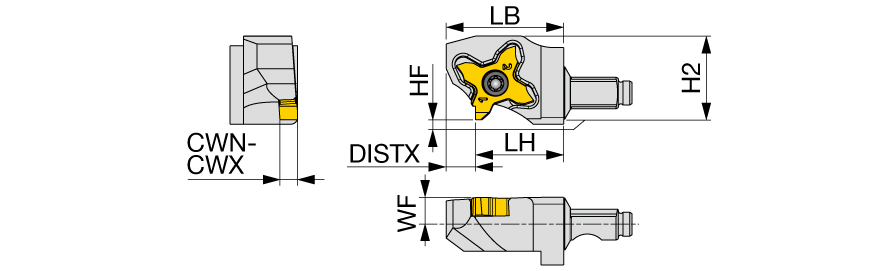

| Cutting Width Minimum (CWN) | 0.013″ | Functional Length (LF) | 0.783″ |
| Cutting Width Maximum (CWX) | 1/8″ | Head Length (LH) | 0.768″ |
| Cutting Depth Maximum (CDX) | 0.138″ | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 0.472″ | Application | | Ext Threading | External grooving | |
| Shank Width (B) | 0.472″ | Body Material | Steel |
| Functional Width (WF) | 0.236″ | Measurement Type | Inch |
Product Features
| Family Description | Y-axis turning modular head for external grooving and threading | Country of Origin | JAPAN |
| Remarks | Use right hand toolholders (R) with right hand inserts (R). |
