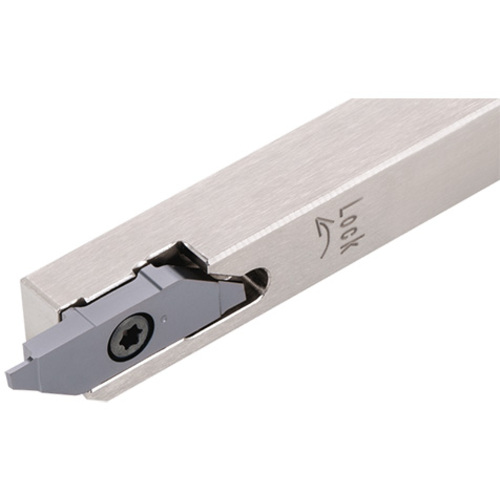

JSXXR1010H05
Grooving Toolholder ; 10 mm Shank Height ; 10 mm Shank Width ; 0.5 mm CW Min. ; 1 mm CW Max. ; 6 mm Max Depth ; Right Hand ; Steel

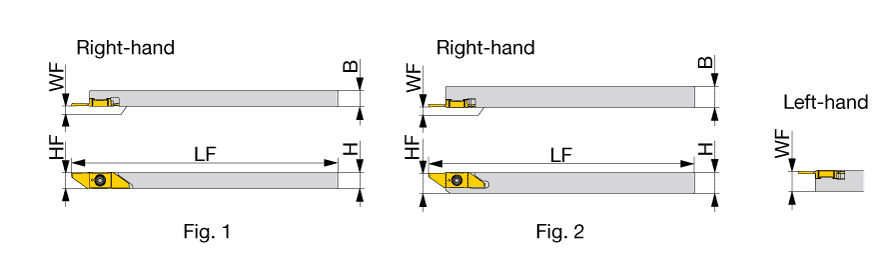

| Cutting Width Minimum (CWN) | 0.5 mm | Functional Length (LF) | 100 mm |
| Cutting Width Maximum (CWX) | 1 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 6 mm | Application | | External grooving | For Miniature machining | Parting off | |
| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 0.2 mm | Measurement Type | Metric |
Product Features
| Family Description | Parting-off and front turning toolholder | Country of Origin | Japan |
| Remarks | Use right hand toolholders (JSXXR...) with right hand inserts (JV****R...); and left hand toolholders (JSXXL...) with left hand inserts (JV****L...). |
Shipping Info
Package Weight
96
