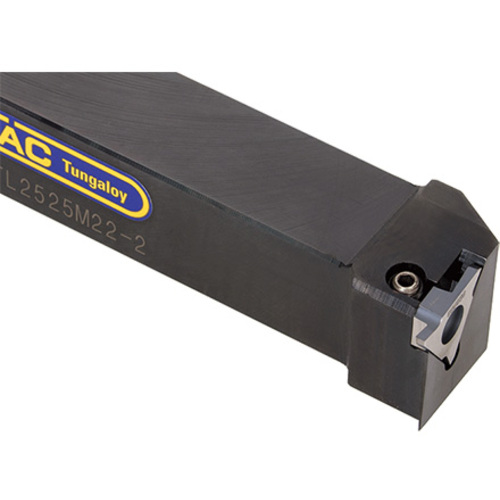

TGTTL2525M22-3
Grooving Toolholder ; 25 mm Shank Height ; 25 mm Shank Width ; 2.5 mm CW Min. ; 4.5 mm CW Max. ; 5.4 mm Max Depth ; Left Hand ; Steel

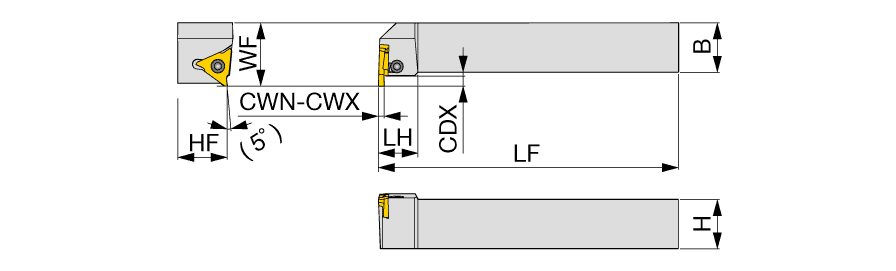

| Cutting Width Minimum (CWN) | 2.5 mm | Head Length (LH) | 5.4 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 5.4 mm | Application | | External grooving | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 32 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm |
Product Features
| Family Description | Parpendicular toolholders for external grooving, with triple corner inserts | Country of Origin | JAPAN |
| Remarks | See applicable inserts table. The left hand insert (GBL) is used for the right hand toolholders (TGTTR), and the right hand insert (GBR) is used for the left hand toolholders (TGTTL). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.664
