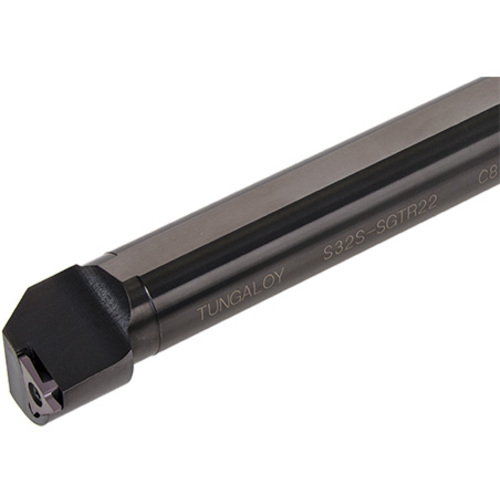

S32S-SGTR22
Grooving Toolholder ; 30 mm Shank Height ; 32 mm Shank Dia. ; 1.25 mm CW Min. ; 4.5 mm CW Max. ; 2.5 mm Max Depth ; Right Hand ; Steel

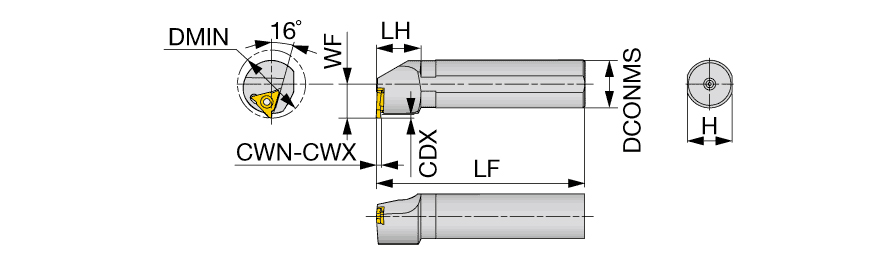

| Cutting Width Minimum (CWN) | 1.25 mm | Head Length (LH) | 30 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Depth Maximum (CDX) | 2.5 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 30 mm | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 40 mm | Body Material | Steel |
| Functional Width (WF) | 23 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 250 mm | Measurement Type | Metric |
Product Features
| Family Description | Toolholders for internal grooving | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (GBR) is used for the left hand toolholders (SGTL) , and the left hand insert (GBL) is used for the right hand toolholders (SGTR). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
3.490
