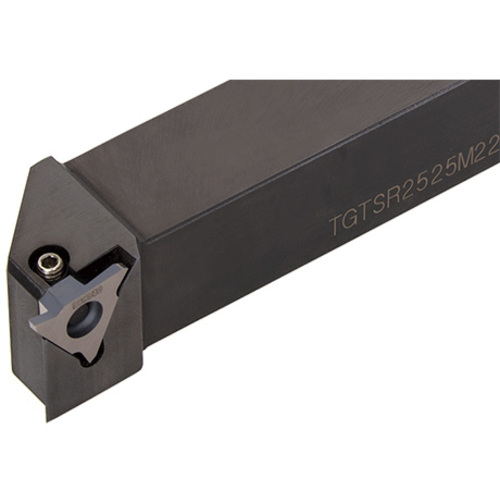

TGTSR2020K22-3
Grooving Toolholder ; 20 mm Shank Height ; 20 mm Shank Width ; 2.5 mm CW Min. ; 4.5 mm CW Max. ; 5.4 mm Max Depth ; Right Hand ; Steel

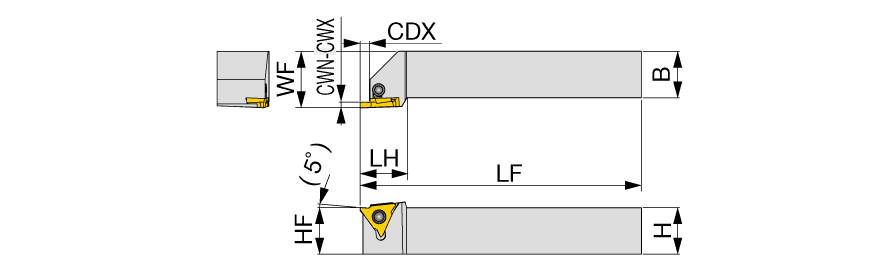

| Cutting Width Minimum (CWN) | 2.5 mm | Head Length (LH) | 5.4 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 5.4 mm | Application | | External grooving | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 25 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm |
Product Features
| Family Description | External toolholders for grooving, with triple corner inserts | Country of Origin | JAPAN |
| Remarks | See applicable inserts table. The right hand insert (GBR) is used for the right hand toolholders (TGTSR), and the left hand insert (GBL) is used for the left hand toolholders (TGTSL). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.877
