CGWSL2020-W20GL-L

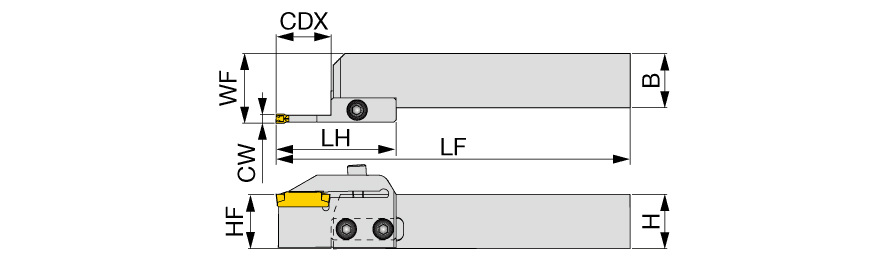

| Cutting Depth Maximum (CDX) | 15 mm | Cutting Direction (HAND) | Left Hand |
| Shank Height (H) | 20 mm | Application | | External grooving | |
| Shank Width (B) | 20 mm | Body Material | Steel |
| Functional Width (WF) | 26.7 mm | Tool Type | Turn-Groove Tools |
| Functional Length (LF) | 153.5 mm | Measurement Type | Metric |
| Head Length (LH) | 16.5 mm |
Product Features
| Family Description | External toolholders for deep grooving & turning | Country of Origin | Japan |
| Remarks | When ordering, Shank and blade assembly designation or Shank and Blade set are required. When using a right or left hand blade set, the right hand blade set is used with right hand shank and the left hand blade set is used with left hand shank. |
Shipping Info
Package Weight
1.138
