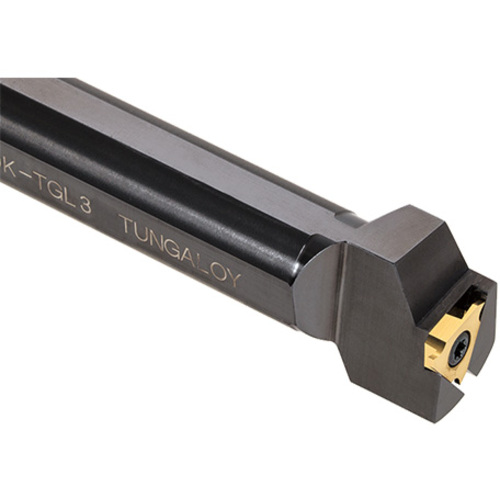

JS22K-TGL3
Grooving Toolholder ; 21 mm Shank Height ; 21 mm Shank Width ; 22 mm Shank Dia. ; 0.33 mm CW Min. ; 3 mm CW Max. ; 2.6 mm Max Depth ; Left Hand ; Steel

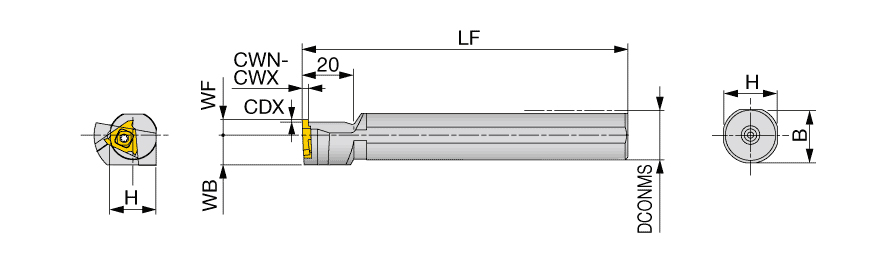

| Cutting Width Minimum (CWN) | 0.33 mm | Head Length (LH) | 20 mm |
| Cutting Width Maximum (CWX) | 3 mm | Connection Diameter Machine Side (DCONMS) | 22 mm |
| Cutting Depth Maximum (CDX) | 2.6 mm | Cutting Direction (HAND) | Left Hand |
| Shank Height (H) | 21 mm | Application | | External grooving | |
| Shank Width (B) | 21 mm | Body Material | Steel |
| Functional Width (WF) | 6 mm | Tool Type | Parting & Grooving Tools |
| Functional Length (LF) | 125 mm | Measurement Type | Metric |
Product Features
| Family Description | External grooving toolholders for small lathe, parpendicularly mounted inserts | Country of Origin | Japan |
| Remarks | Left hand toolholders (TGL3) are used with right hand inserts (JTGR3). Recommend clamping torque: 3.0 Nm |
Shipping Info
Package Weight
0.825
