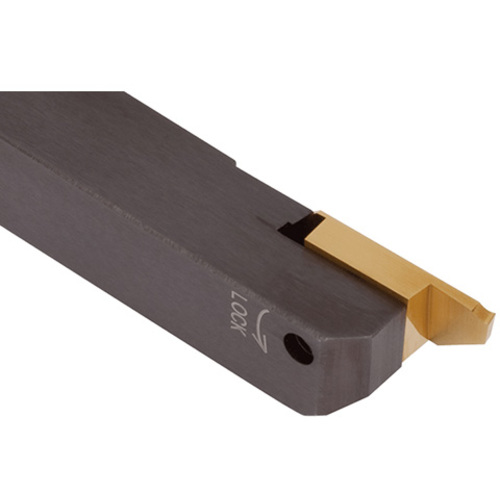

JSXGL1010K8-C
Grooving Toolholder ; 10 mm Shank Height ; 10 mm Shank Width ; 0.7 mm CW Min. ; 2 mm CW Max. ; 6.7 mm Max Depth ; Left Hand ; Steel

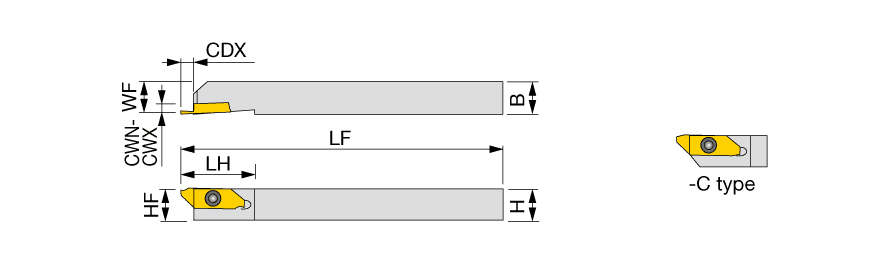

| Cutting Width Minimum (CWN) | 0.7 mm | Head Length (LH) | 6.7 mm |
| Cutting Width Maximum (CWX) | 2 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 6.7 mm | Application | | External grooving | |
| Shank Height (H) | 10 mm | Body Material | Steel |
| Shank Width (B) | 10 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 9.9 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm |
Product Features
| Family Description | No-offset Screw-on toolholder for front & reverse turning with JXFR/L8** or JXRR/L8** inserts & external grooving with JXGR/L8** | Country of Origin | Japan |
| Remarks | Can be wrenched from back side with double socket torx screw. JSXGR/L type toolholders are used for JXG type grooving inserts, JXF type front turning inserts and JXR type reverse turning inserts. |
Shipping Info
Package Weight
0.236
