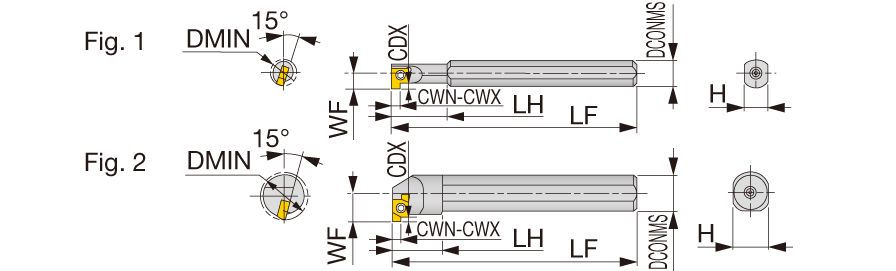

| Cutting Width Minimum (CWN) | 1 mm | Head Length (LH) | 45 mm |
| Cutting Width Maximum (CWX) | 2 mm | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Depth Maximum (CDX) | 1.5 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 9 mm | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 12 mm | Body Material | Carbide |
| Functional Width (WF) | 6.8 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 150 mm | Measurement Type | Metric |
Product Features

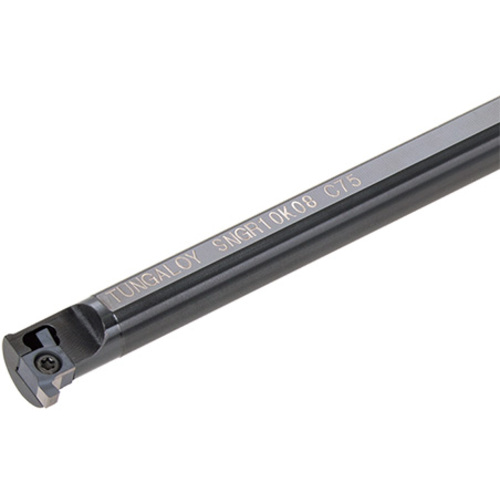

| Family Description | Toolholders for internal grooving | Country of Origin | JAPAN |
| Remarks | Use the right hand insert (R) with the right hand holder (SNGR...), and use the left hand insert (L) with the left hand holder (SNGL...). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.421
