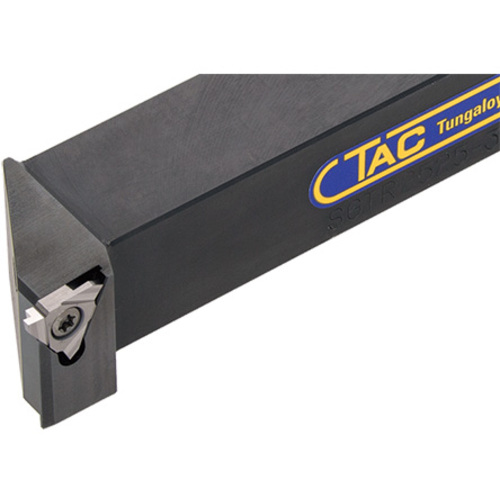

SGTR2020-3
Grooving Toolholder ; 20 mm Shank Height ; 20 mm Shank Width ; 1.15 mm CW Min. ; 2.7 mm CW Max. ; 3 mm Max Depth ; Right Hand ; Steel

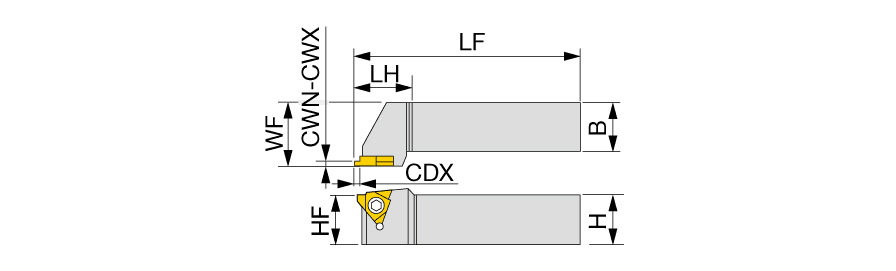

| Cutting Width Minimum (CWN) | 1.15 mm | Head Length (LH) | 20 mm |
| Cutting Width Maximum (CWX) | 2.7 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 3 mm | Application | | External grooving | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 25 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm |
Product Features
| Family Description | External toolholders for grooving, with triple corner inserts | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.902
