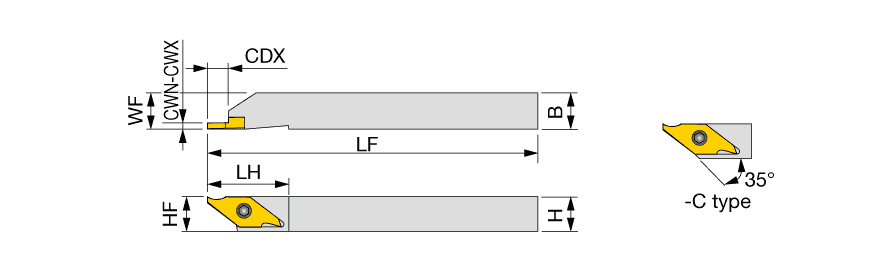

JSVGR1616K
Grooving Toolholder ; 16 mm Shank Height ; 16 mm Shank Width ; 0.33 mm CW Min. ; 2 mm CW Max. ; 6.2 mm Max Depth ; Right Hand ; Steel
| Cutting Width Minimum (CWN) | 0.33 mm | Head Length (LH) | 23 mm |
| Cutting Width Maximum (CWX) | 2 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 6.2 mm | Application | | External grooving | |
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 16 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm |
Product Features
| Family Description | External grooving toolholders for small lathe | Country of Origin | Japan |
| Remarks | Recommend clamping torque: 2.3 Nm |
Shipping Info
Package Weight
0.534
