GX-2525RI
Grooving Toolholder ; 25 mm Shank Height ; 25 mm Shank Width ; 1 mm CW Min. ; 4.5 mm CW Max. ; 6 mm Max Depth ; Right Hand ; Steel

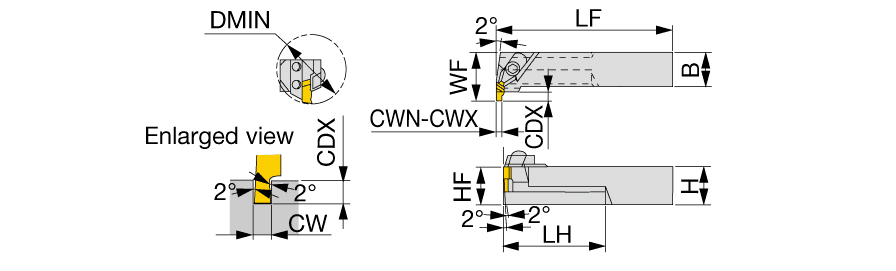

| Cutting Width Minimum (CWN) | 1 mm | Functional Length (LF) | 200 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Head Length (LH) | 70 mm |
| Cutting Depth Maximum (CDX) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 25 mm | Application | | Internal grooving | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 55 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 35 mm | Measurement Type | Metric |
Product Features
| Family Description | Toolholders for internal grooving | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (XGR) is used for the left hand toolholders (GX ****LI) , and the left hand insert (XGL) is used for the right hand toolholders (GX ****RI). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
2.271
