GX-2020LE
Grooving Toolholder ; 20 mm Shank Height ; 20 mm Shank Width ; 1 mm CW Min. ; 4.5 mm CW Max. ; 6.5 mm Max Depth ; Left Hand ; Steel

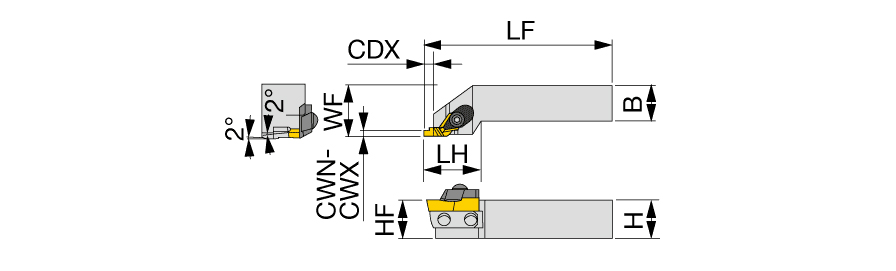

| Cutting Width Minimum (CWN) | 1 mm | Head Length (LH) | 35 mm |
| Cutting Width Maximum (CWX) | 4.5 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 6.5 mm | Application | | External grooving | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 25 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm |
Product Features
| Family Description | External toolholders for grooving, with double-ended inserts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.939
