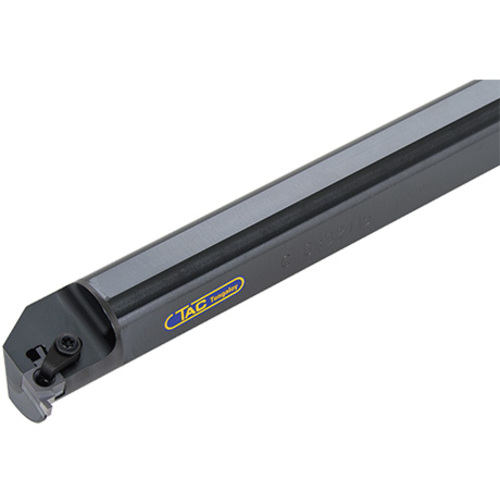

CNGR32T15
Grooving Toolholder ; 30 mm Shank Height ; 32 mm Shank Dia. ; 2 mm CW Min. ; 5 mm CW Max. ; 5 mm Max Depth ; Right Hand ; Steel

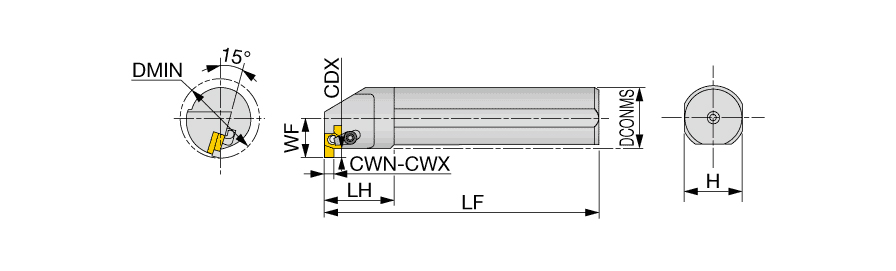

| Cutting Width Minimum (CWN) | 2 mm | Head Length (LH) | 35 mm |
| Cutting Width Maximum (CWX) | 5 mm | Connection Diameter Machine Side (DCONMS) | 32 mm |
| Cutting Depth Maximum (CDX) | 5 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 30 mm | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 40 mm | Body Material | Steel |
| Functional Width (WF) | 22.1 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 300 mm | Measurement Type | Metric |
Product Features
| Family Description | Toolholders for internal grooving | Country of Origin | JAPAN |
| Remarks | Use the right hand insert (*GR...) with the right hand holder (CNGR...), and use the left hand insert (*GL...) with the left hand holder (CNGL...). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
4.063
Related Documentation

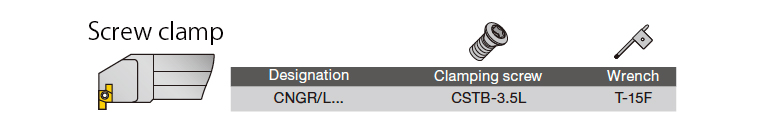

Optional parts for CNG holders @Use the following parts for screw clamp options.
