CGXR16SC
Grooving Toolholder ; 15 mm Shank Height ; 0 mm Shank Width ; 16 mm Shank Dia. ; 1 mm CW Min. ; 3 mm CW Max. ; 3 mm Max Depth ; Right Hand ; Carbide

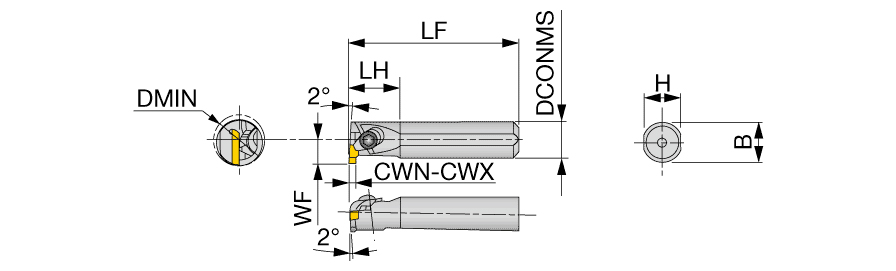

| Cutting Width Minimum (CWN) | 1 mm | Head Length (LH) | 24 mm |
| Cutting Width Maximum (CWX) | 3 mm | Connection Diameter Machine Side (DCONMS) | 16 mm |
| Cutting Depth Maximum (CDX) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 15 mm | Application | | Internal grooving | |
| Shank Width (B) | 0 mm | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 20 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Width (WF) | 11.3 mm | Measurement Type | Metric |
| Functional Length (LF) | 200 mm |
Product Features
| Family Description | Toolholders for internal grooving | Country of Origin | JAPAN |
| Remarks | When using a right or left hand insert, the right hand insert (GIR) is used for the right hand toolholders (CGXR) , and the left hand insert (GIL) is used for the left hand toolholders (CGXL). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.371
