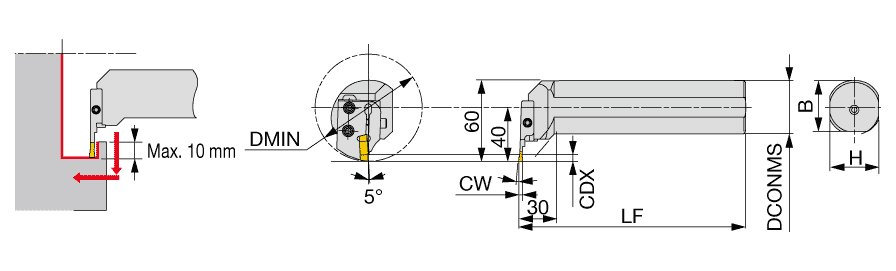

| Cutting Depth Maximum (CDX) | 10 mm | Connection Diameter Machine Side (DCONMS) | 40 mm |
| Shank Height (H) | 37.5 mm | Cutting Direction (HAND) | Left Hand |
| Shank Width (B) | 37 mm | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 80 mm | Body Material | Steel |
| Functional Width (WF) | 40 mm | Tool Type | Indexable Turn & Groov Tools |
| Functional Length (LF) | 180 mm | Measurement Type | Metric |
| Head Length (LH) | 30 mm |

Product Features

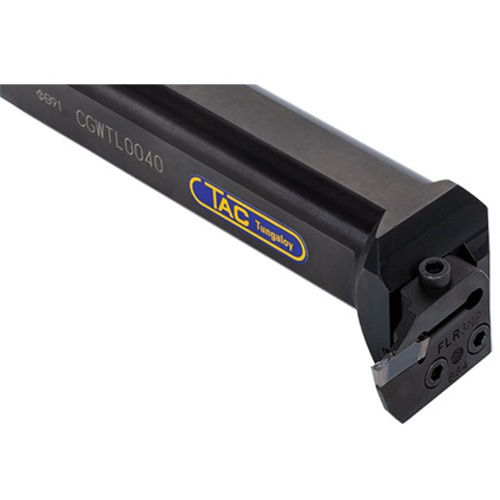

| Family Description | Toolholders for internal grooving & turning | Country of Origin | JAPAN |
| Remarks | When ordering, Shank and blade assembly designation or Shank and Blade set are required. When using a right or left hand blade set, the right hand blade set is used with right hand shank and the left hand blade set is used with left hand shank. Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
3.997
