‎3833S 1/2X1-5/8X4 3FL SE

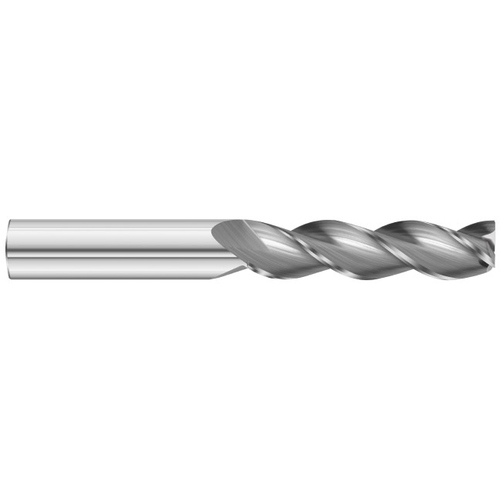

‎SQ End Mill; 1/2″ Dia. × 1-5/8″ LOC × 1/2″ Shank Dia. × 4″ OAL ; 3 FL ; Carbide ; Uncoated ; Series 3833

Item # FT8527952

Brand: Fullerton Tool

MFG #: 27952

Legacy Part #: FT8527952

TradeName: 3833 AlumaMill G3 End Mill

Quantity Available

Cutting Diameter (DC)

1/2″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

1/2″

End Shape

Square

Depth of Cut Maximum (APMX)

‎1-5/8″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

4″

Length Group

Extra Long

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

Uncoated

Decimal Equivalent

0.5″

Flute Count (NOF)

Series/List #

3833

Flute Helix Angle (FHA)

37.5 Degrees

Product Features

Remarks

‎

Square, Ball and Radius End

3 Flutes

37.5° High Helix

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard Uncoated and FC-19 Coating

Inch Based Tools

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.0000″ -. 0005″ / +0.000–0.013mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.315
