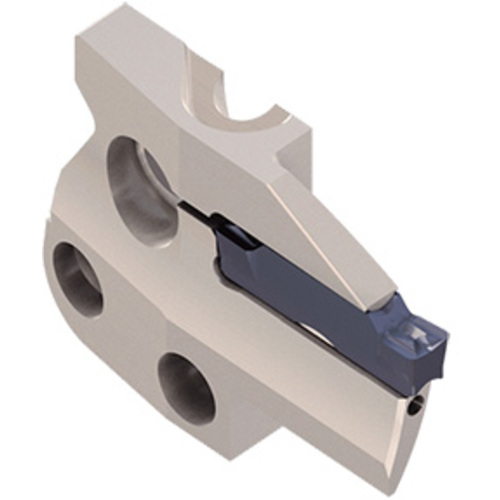

CAFR-3T12-100140-CHP
Grooving Toolholder ; 0.098″ CW Min. ; 0.137″ CW Max. ; 0.472″ Max Depth ; Right Hand ; Steel

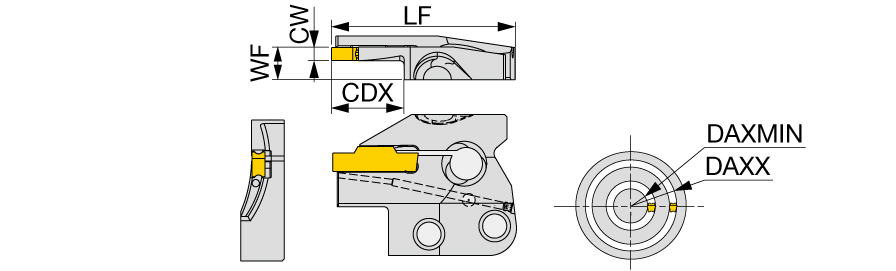

| Cutting Width Minimum (CWN) | 0.098″ | Cutting Direction (HAND) | Right Hand |
| Cutting Width Maximum (CWX) | 0.137″ | Application | | Face grooving | |
| Cutting Depth Maximum (CDX) | 0.472″ | Body Material | Steel |
| Functional Width (WF) | 0.295″ | Tool Type | Face Turning & grooving Tools |
| Functional Length (LF) | 1.693″ | Measurement Type | Inch |
Product Features
| Family Description | Modular-type face grooving and turning adapter with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | Use the right hand insert for the right hand holder with DTF insert, and the left hand insert for the left hand holder with DTF insert. For "DAXMIN" limited by insert geometry, click on "More Info". |
Shipping Info
Package Weight
0.000
Related Documentation
Please use single-sided inserts (e.g. SGM, SGS) in the case of grooving depth is deeper than insert length - 1.5 mm. @Insert geometry limits "DAXMIN (Face grooving minimum inside diameter)".
