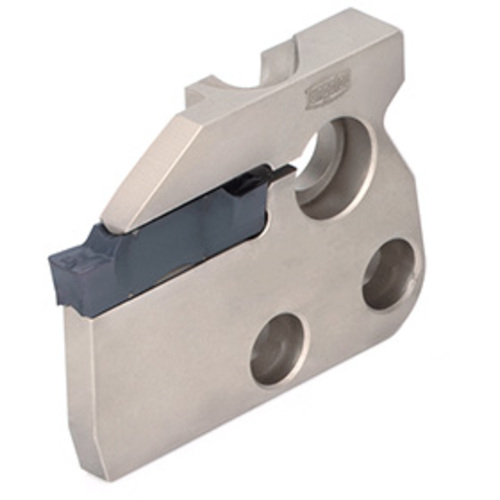

CAEL-5T20-MD
Grooving Toolholder ; 1.299″ Shank Height ; 0.283″ Shank Width ; 0.177″ CW Min. ; 0.216″ CW Max. ; 0.787″ Max Depth ; Left Hand ; Steel

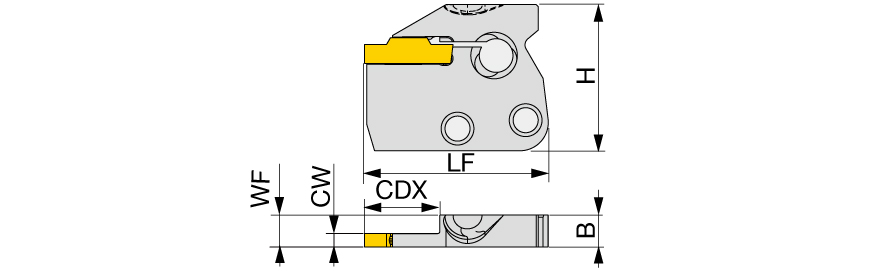

| Cutting Width Minimum (CWN) | 0.177″ | Functional Length (LF) | 1.823″ |
| Cutting Width Maximum (CWX) | 0.216″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.787″ | Application | | External grooving | |
| Shank Height (H) | 1.299″ | Body Material | Steel |
| Shank Width (B) | 0.283″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.307″ | Measurement Type | Inch |
Product Features
| Family Description | Modular-type external grooving, turning and parting adapter | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
Related Documentation
Please use single-sided inserts (e.g. SGM, SGS) in the case of grooving depth is deeper than insert length - 1.5 mm.
