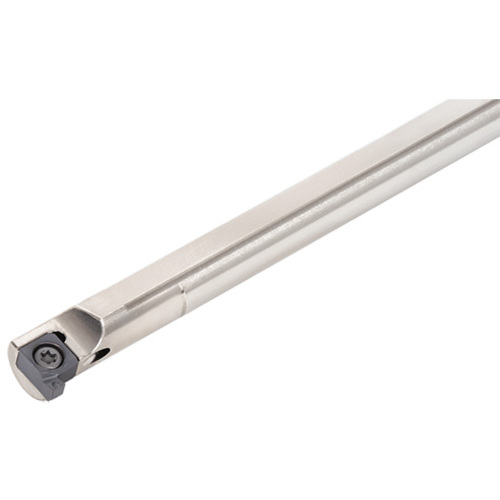

A10K-SNGR07-D120
Grooving Toolholder ; 9 mm Shank Height ; 10 mm Shank Dia. ; 1 mm CW Min. ; 2 mm CW Max. ; 1.5 mm Max Depth ; Right Hand ; Steel

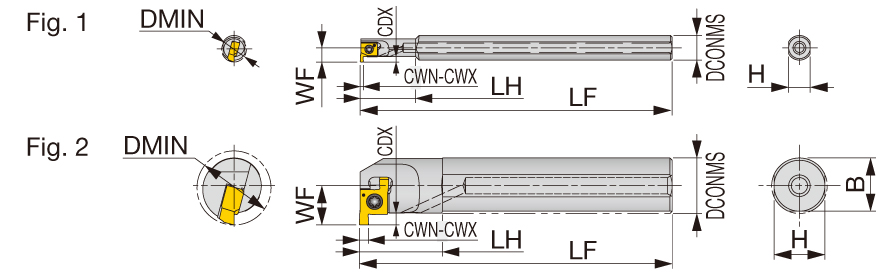

| Cutting Width Minimum (CWN) | 1 mm | Head Length (LH) | 29 mm |
| Cutting Width Maximum (CWX) | 2 mm | Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Depth Maximum (CDX) | 1.5 mm | Cutting Direction (HAND) | Right Hand |
| Shank Height (H) | 9 mm | Application | | Internal grooving | |
| Minimum Bore Diameter (DMIN) | 12 mm | Body Material | Steel |
| Functional Width (WF) | 6.8 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm |
Product Features
| Family Description | Toolholder for internal grooving | Country of Origin | JAPAN |
| Remarks | Use the right hand insert (R) with the right hand holder (SNGR...). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
