CTER2525-2T20
Grooving Toolholder ; 25 mm Shank Height ; 25 mm Shank Width ; 1.5 mm CW Min. ; 2.49 mm CW Max. ; 20 mm Max Depth ; Right Hand ; Steel

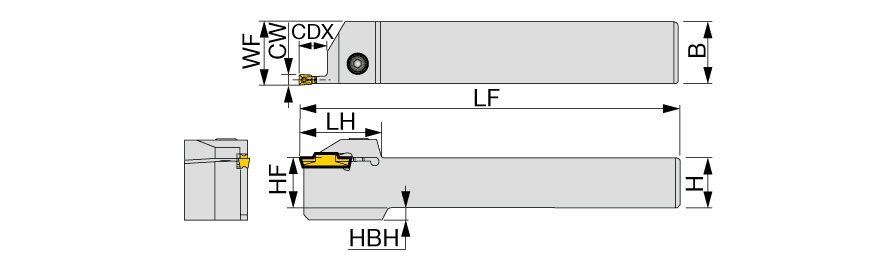

| Cutting Width Minimum (CWN) | 1.5 mm | Head Length (LH) | 38.5 mm |
| Cutting Width Maximum (CWX) | 2.49 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 20 mm | Application | | External grooving | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 25.1 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm |
Product Features
| Family Description | External toolholders for grooving, parting & turning | Country of Origin | JAPAN |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. See applicable inserts table. Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
