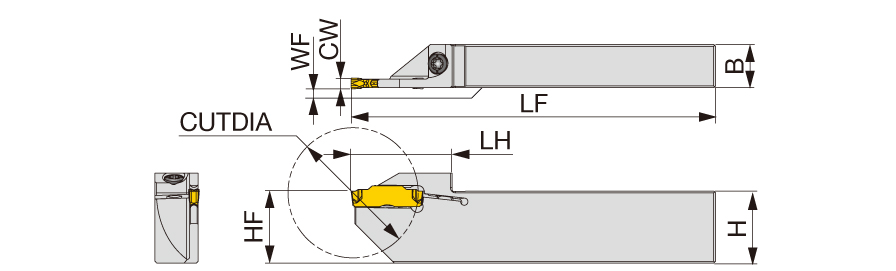

JCTEL2012H2T18
Grooving Toolholder ; 20 mm Shank Height ; 12 mm Shank Width ; 1.5 mm CW Min. ; 2.49 mm CW Max. ; 18 mm Max Depth ; Left Hand ; Steel
| Cutting Width Minimum (CWN) | 1.5 mm | Head Length (LH) | 25 mm |
| Cutting Width Maximum (CWX) | 2.49 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 18 mm | Application | | External grooving | Parting off | |
| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 0.65 mm | Measurement Type | Metric |
| Functional Length (LF) | 100 mm |
Product Features
| Family Description | External grooving & parting toolholders for small lathes. 20 mm shank height | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
