STCL08-27-CHP
Grooving Toolholder ; 1/2″ Shank Height ; 1/2″ Shank Width ; 0.02″ CW Min. ; 1/8″ CW Max. ; 0.252″ Max Depth ; Left Hand ; Steel

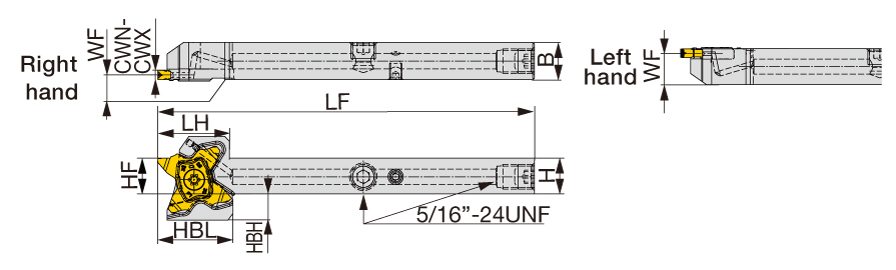

| Cutting Width Minimum (CWN) | 0.02″ | Head Length (LH) | 0.906″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.252″ | Application | | External grooving | |
| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 0.441″ | Measurement Type | Inch |
| Functional Length (LF) | 4-3/4″ |
Product Features
| Family Description | Precision external grooving tool with high pressure coolant channels. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | JAPAN |
| Remarks | Make sure to avoid tool interferences when used on Swiss machines. Torque: Recommended torque (Nm) for clamping |
