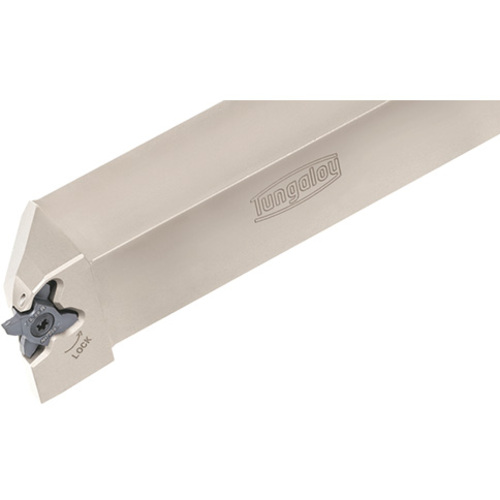

STCL12-18-CHP
Grooving Toolholder ; 3/4″ Shank Height ; 3/4″ Shank Width ; 0.013″ CW Min. ; 1/8″ CW Max. ; 0.138″ Max Depth ; Left Hand ; Steel

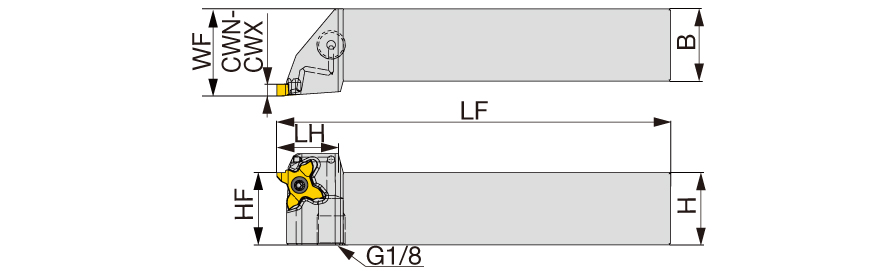

| Cutting Width Minimum (CWN) | 0.013″ | Head Length (LH) | 0.9″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.138″ | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 3/4″ | Body Material | Steel |
| Shank Width (B) | 3/4″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1″ | Measurement Type | Inch |
| Functional Length (LF) | 4-3/4″ |
Product Features
| Family Description | External grooving and threading tool with high pressure coolant channels | Country of Origin | JAPAN |
| Remarks | The right hand insert (TC*18R...) is used for the right hand toolholders (STCR...), and the left hand insert (TC*18L...) is used for the left hand toolholders (STCL...). Torque: Recommended torque (Nm) for clamping. |
