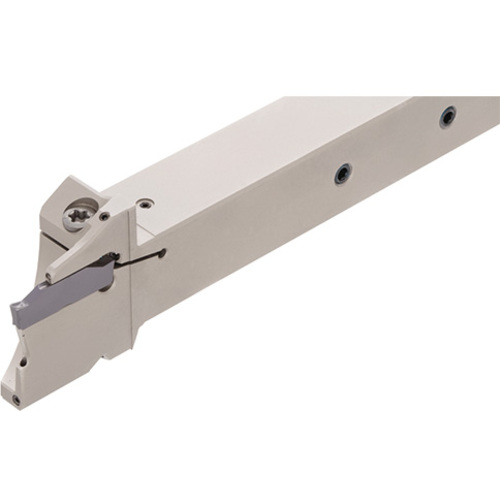

JCTEL08X2T12-CHP
Grooving Toolholder ; 1/2″ Shank Height ; 1/2″ Shank Width ; 0.059″ CW Min. ; 0.098″ CW Max. ; 0.49″ Max Depth ; Left Hand ; Steel

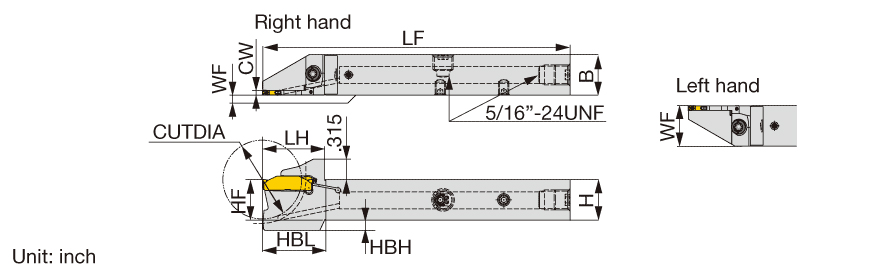

| Cutting Width Minimum (CWN) | 0.059″ | Head Length (LH) | 0.972″ |
| Cutting Width Maximum (CWX) | 0.098″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.49″ | Application | | External grooving | Parting off | |
| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1/2″ | Measurement Type | Inch |
| Functional Length (LF) | 4-3/4″ |
Product Features
| Family Description | External grooving & parting toolholder with high pressure coolant channels, for swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
