JCTEL1616X2T12-CHP
Grooving Toolholder ; 16 mm Shank Height ; 16 mm Shank Width ; 1.5 mm CW Min. ; 2.49 mm CW Max. ; 12.5 mm Max Depth ; Left Hand ; Steel

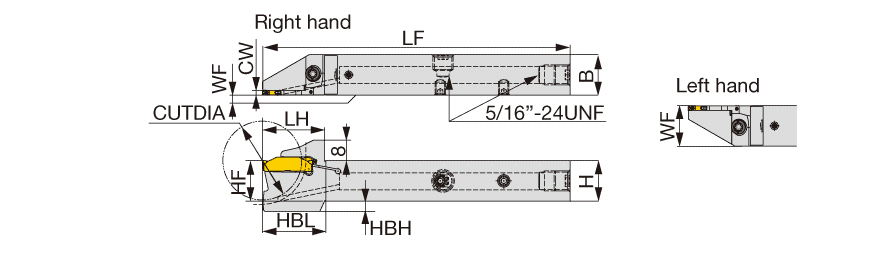

| Cutting Width Minimum (CWN) | 1.5 mm | Head Length (LH) | 24.7 mm |
| Cutting Width Maximum (CWX) | 2.49 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 12.5 mm | Application | | External grooving | Parting off | |
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 16 mm | Measurement Type | Metric |
| Functional Length (LF) | 120 mm |
Product Features
| Family Description | External grooving & parting toolholder with high pressure coolant channels, for swiss lathes. Compatible to the direct internal coolant supply system without the use of external coolant hose. | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
