STCR2525Z18-CHP
Grooving Toolholder ; 25 mm Shank Height ; 25 mm Shank Width ; 0.33 mm CW Min. ; 3.18 mm CW Max. ; 3.5 mm Max Depth ; Right Hand ; Steel

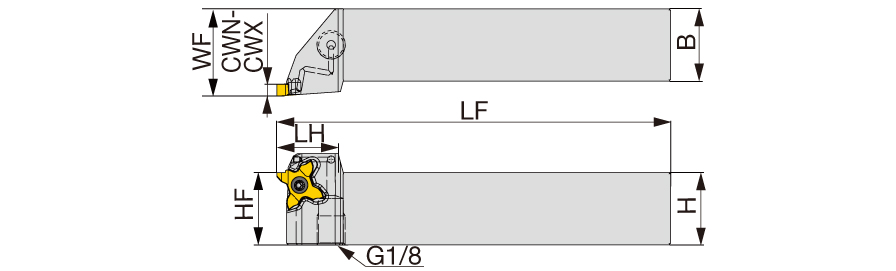

| Cutting Width Minimum (CWN) | 0.33 mm | Head Length (LH) | 23 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 3.5 mm | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 30 mm | Measurement Type | Metric |
| Functional Length (LF) | 135 mm |
Product Features
| Family Description | External grooving and threading tool with high pressure coolant channels | Country of Origin | JAPAN |
| Remarks | The right hand insert (TC*18R...) is used for the right hand toolholders (STCR...), and the left hand insert (TC*18L...) is used for the left hand toolholders (STCL...). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.000
