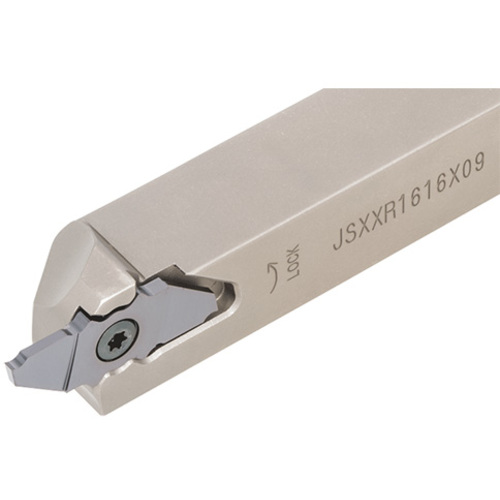

JSXXL2525Z09
Grooving Toolholder ; 25 mm Shank Height ; 25 mm Shank Width ; 0.6 mm CW Min. ; 2.5 mm CW Max. ; 10.5 mm Max Depth ; Left Hand ; Steel

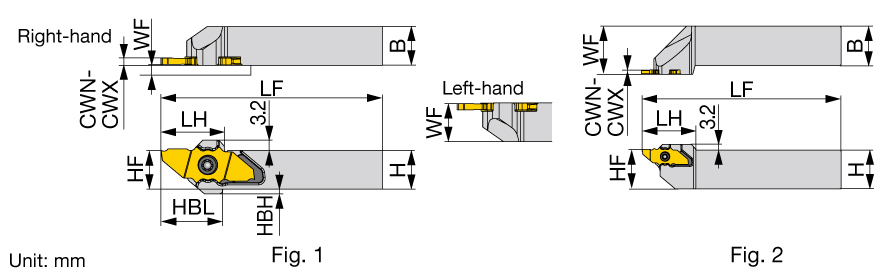

| Cutting Width Minimum (CWN) | 0.6 mm | Head Length (LH) | 34 mm |
| Cutting Width Maximum (CWX) | 2.5 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 10.5 mm | Application | | Ext Threading | External grooving | For Miniature machining | Parting off | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 30 mm | Measurement Type | Metric |
| Functional Length (LF) | 135 mm |
Product Features
| Family Description | Parting off tools for swiss lathes | Country of Origin | JAPAN |
| Remarks | When JX**12... insert is used, "LF", "LH" and "HBL" are shorter 2 mm. When JX**06... insert is used, "LF", "LH" and "HBL" are shorter 4 mm. When JX**20... insert is used, "LF", "LH" and "HBL" are longer 2 mm. The right hand insert (JX****R...) is used for the right hand toolholders (JSXXR...), and the left hand insert (JX****L...) is used for the left hand toolholders (JSXXL...). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.000
