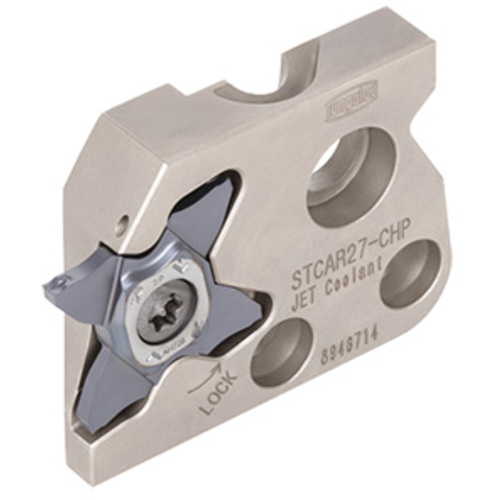

STCAR27-CHP
Grooving Toolholder ; 1.299″ Shank Height ; 0.283″ Shank Width ; 0.02″ CW Min. ; 1/8″ CW Max. ; 0.252″ Max Depth ; Right Hand ; Steel

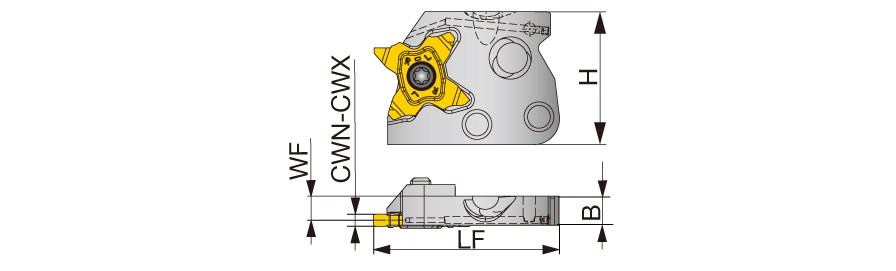

| Cutting Width Minimum (CWN) | 0.02″ | Functional Length (LF) | 1.811″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.252″ | Application | | External grooving | |
| Shank Height (H) | 1.299″ | Body Material | Steel |
| Shank Width (B) | 0.283″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.236″ | Measurement Type | Inch |
Product Features
| Family Description | Modular blades for external grooving & parting, with high pressure coolant channels | Country of Origin | Japan |
| Remarks | Torque: Recommended torque (Nm) for clamping |
