CAER-3T20-CHP
Grooving Toolholder ; 1.299″ Shank Height ; 0.283″ Shank Width ; 0.098″ CW Min. ; 0.137″ CW Max. ; 0.787″ Max Depth ; Right Hand ; Steel

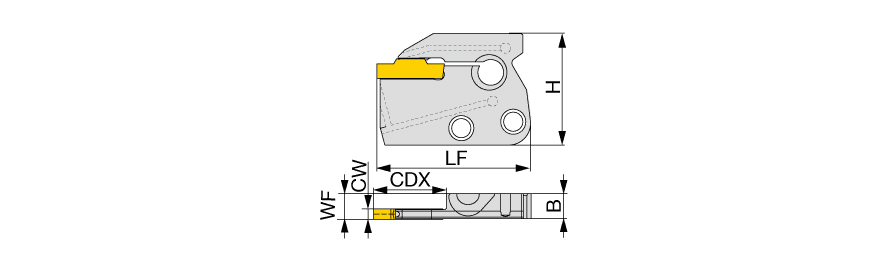

| Cutting Width Minimum (CWN) | 0.098″ | Functional Length (LF) | 1.791″ |
| Cutting Width Maximum (CWX) | 0.137″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.787″ | Application | | External grooving | |
| Shank Height (H) | 1.299″ | Body Material | Steel |
| Shank Width (B) | 0.283″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.295″ | Measurement Type | Inch |
Product Features
| Family Description | Modular-type external grooving and parting adapter, with high pressure coolant capability | Country of Origin | ISRAEL |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. |
Shipping Info
Package Weight
0.000
