JS22X-STCL18
Grooving Toolholder ; 21 mm Shank Height ; 22 mm Shank Dia. ; 0.33 mm CW Min. ; 3.18 mm CW Max. ; 3.5 mm Max Depth ; Left Hand ; Steel

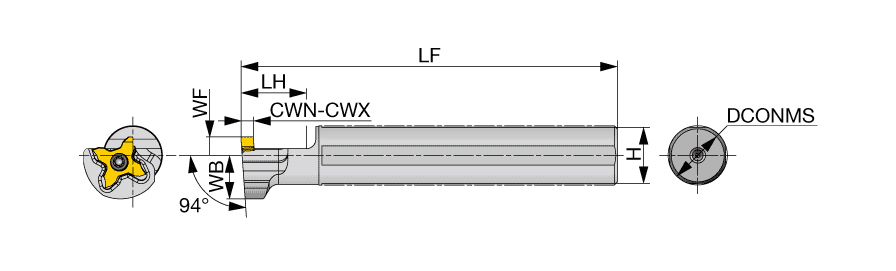

| Cutting Width Minimum (CWN) | 0.33 mm | Connection Diameter Machine Side (DCONMS) | 22 mm |
| Cutting Width Maximum (CWX) | 3.18 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 3.5 mm | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 21 mm | Body Material | Steel |
| Functional Width (WF) | 10 mm | Tool Type | TOOLHOLDERS - ROUND SHANK |
| Functional Length (LF) | 120 mm | Measurement Type | Metric |
| Head Length (LH) | 20 mm |
Product Features
| Family Description | Precision grooving tools with uniquely shaped insert for Swiss type machine, automatic and general lathes, Round shank | Country of Origin | JAPAN |
| Remarks | The right hand insert (TC*18R...) is used for the left hand toolholders (JS** STCL...). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.820
