JS159F-STCL18
Grooving Toolholder ; 0.591″ Shank Height ; 0.626″ Shank Dia. ; 0.013″ CW Min. ; 1/8″ CW Max. ; 0.138″ Max Depth ; Left Hand ; Steel

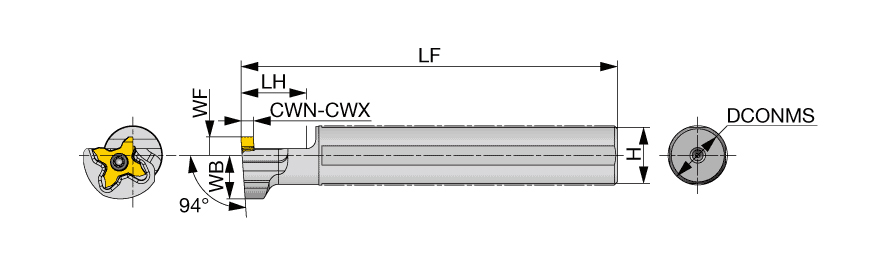

| Cutting Width Minimum (CWN) | 0.013″ | Connection Diameter Machine Side (DCONMS) | 0.626″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.138″ | Application | | Ext Threading | External grooving | |
| Shank Height (H) | 0.591″ | Body Material | Steel |
| Functional Width (WF) | 0.236″ | Tool Type | TOOLHOLDERS - ROUND SHANK |
| Functional Length (LF) | 3.346″ | Measurement Type | Inch |
| Head Length (LH) | 0.787″ |
Product Features
| Family Description | Precision grooving tools with uniquely shaped insert for Swiss type machine, automatic and general lathes, Round shank | Country of Origin | JAPAN |
| Remarks | The right hand insert (TC*18R...) is used for the left hand toolholders (JS** STCL...). Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.353
