JSXXR063-S
Grooving Toolholder ; 3/8″ Shank Height ; 3/8″ Shank Width ; 0.024″ CW Min. ; 0.098″ CW Max. ; 0.335″ Max Depth ; Right Hand ; Steel

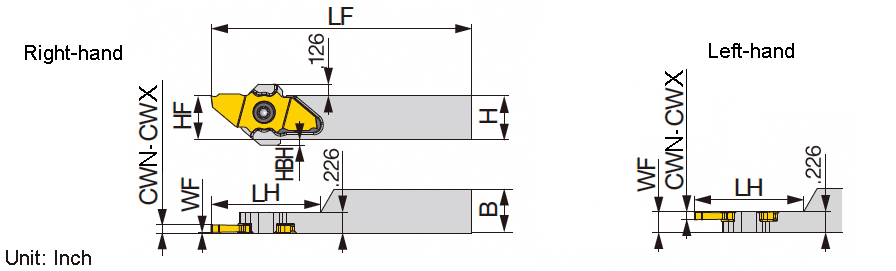

| Cutting Width Minimum (CWN) | 0.024″ | Head Length (LH) | 1.03″ |
| Cutting Width Maximum (CWX) | 0.098″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.335″ | Application | | Ext Threading | External grooving | For Miniature machining | Parting off | |
| Shank Height (H) | 3/8″ | Body Material | Steel |
| Shank Width (B) | 3/8″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 0.008″ | Measurement Type | Inch |
| Functional Length (LF) | 4-3/4″ |
Product Features
| Family Description | Parting off tools for sub spindol in swiss lathes | Country of Origin | Japan |
| Remarks | When JX**12... insert is used, "LF" and "LH" are shorter 2 mm. When JX**06... insert is used, "LF" and "LH" are shorter 4 mm. When JX**20... insert is used, "LF" and "LH" are longer 2 mm. The right hand insert (JX****R...) is used for the right hand toolholders (JSXXR...), and the left hand insert (JX****L...) is used for the left hand toolholders (JSXXL...). Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.247
