CTEFR16-4T04

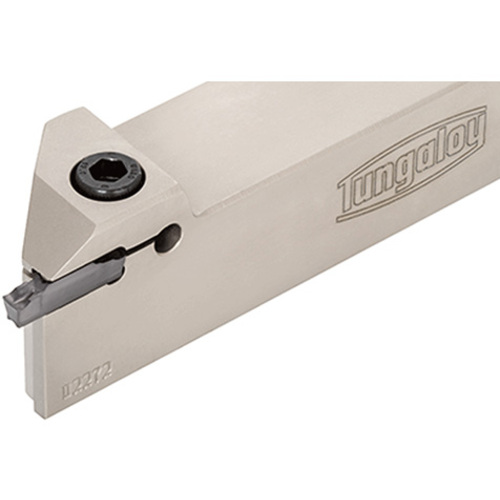

Grooving Toolholder ; 1″ Shank Height ; 1″ Shank Width ; 0.059″ CW Min. ; 0.177″ CW Max. ; 0.189″ Max Depth ; Right Hand ; Steel

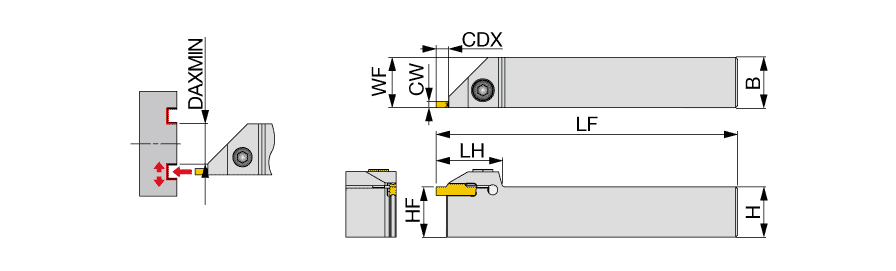

| Cutting Width Minimum (CWN) | 0.059″ | Head Length (LH) | 1.3″ |
| Cutting Width Maximum (CWX) | 0.177″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.189″ | Application | | External grooving | Face grooving | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 1.02″ | Measurement Type | Inch |
| Functional Length (LF) | 6″ |
Product Features
| Family Description | Toolholders for external / face grooving & turning | Country of Origin | JAPAN |
| Remarks | For "DAXMIN (Axial groove inside diameter minimum)", click on "More Info". Use the right hand insert for the right hand holder with DTF insert. Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.864
Related Documentation

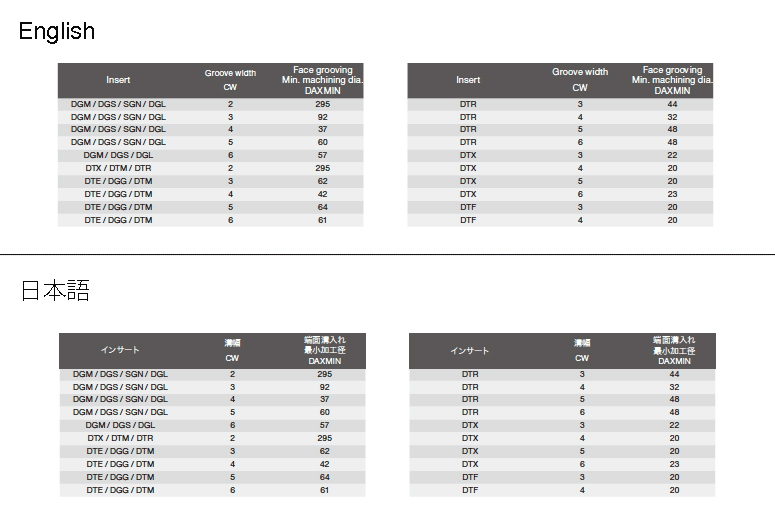

Insert geometry limits "DAXMIN (Axial groove inside diameter minimum)".
