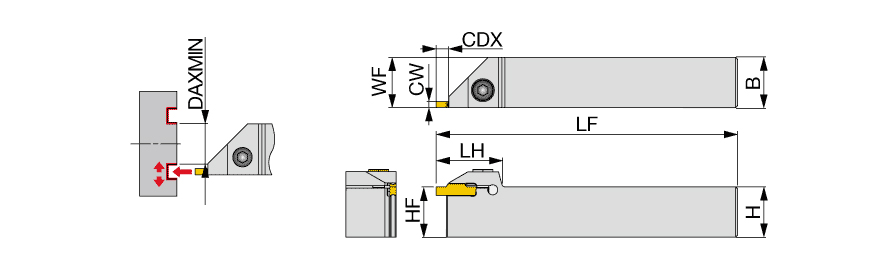

CTEFR2525-4T04
Grooving Toolholder ; 25 mm Shank Height ; 25 mm Shank Width ; 1.5 mm CW Min. ; 4.49 mm CW Max. ; 4.8 mm Max Depth ; Right Hand ; Steel
| Cutting Width Minimum (CWN) | 1.5 mm | Head Length (LH) | 33 mm |
| Cutting Width Maximum (CWX) | 4.49 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 4.8 mm | Application | | External grooving | Face grooving | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 25.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm |
Product Features
| Family Description | Toolholders for external / face grooving & turning | Country of Origin | JAPAN |
| Remarks | See applicable inserts table. Use the right hand insert for the right hand holder with DTF insert. Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
1.614
Related Documentation

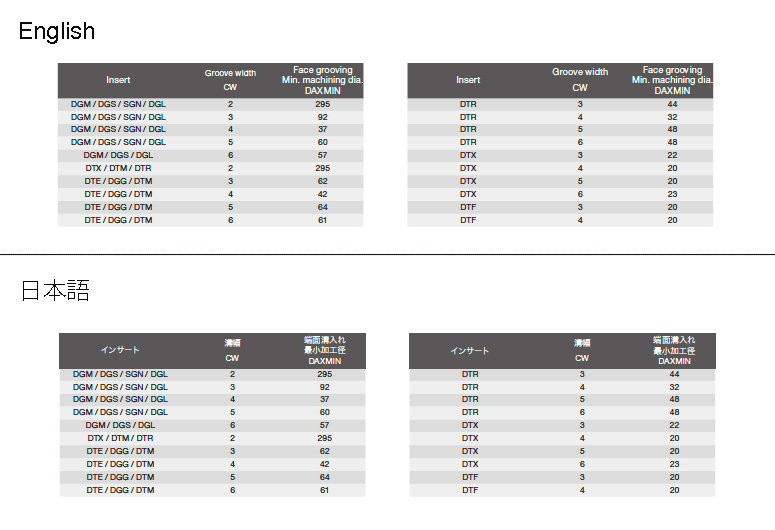

Insert geometry limits "DAXMIN (Axial groove inside diameter minimum)".
