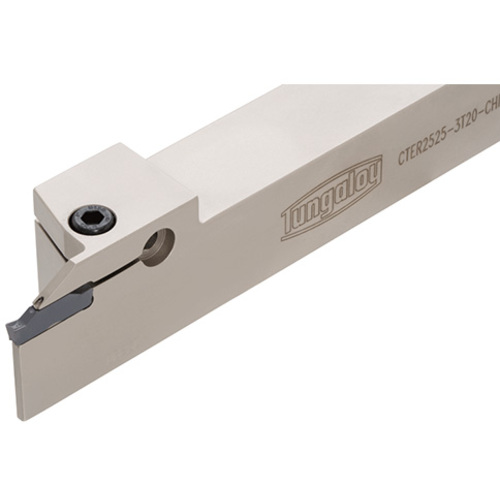

CTER16-3T25-CHP
Grooving Toolholder ; 1″ Shank Height ; 1″ Shank Width ; 0.098″ CW Min. ; 0.137″ CW Max. ; 0.984″ Max Depth ; Right Hand ; Steel

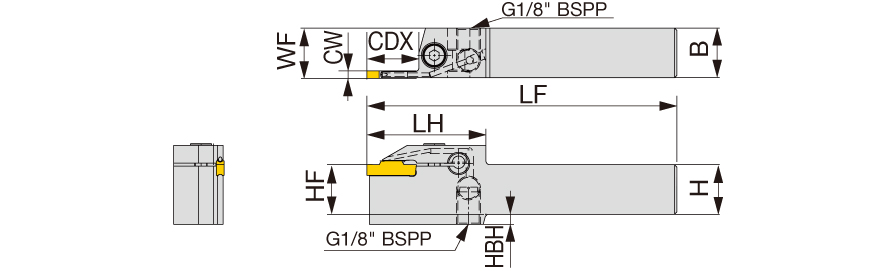

| Cutting Width Minimum (CWN) | 0.098″ | Head Length (LH) | 2.008″ |
| Cutting Width Maximum (CWX) | 0.137″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.984″ | Application | | External grooving | |
| Shank Height (H) | 1″ | Body Material | Steel |
| Shank Width (B) | 1″ | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 0.953″ | Measurement Type | Inch |
| Functional Length (LF) | 6″ |
Product Features
| Family Description | External toolholder for grooving, parting & turning, with high pressure coolant channels, monoblock type | Country of Origin | Japan |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.915
