CTER2525-6T20-CHP
Grooving Toolholder ; 25 mm Shank Height ; 25 mm Shank Width ; 5.5 mm CW Min. ; 6.49 mm CW Max. ; 20 mm Max Depth ; Right Hand ; Steel

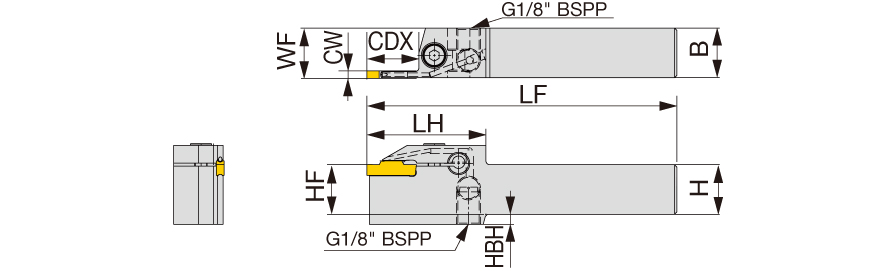

| Cutting Width Minimum (CWN) | 5.5 mm | Head Length (LH) | 52 mm |
| Cutting Width Maximum (CWX) | 6.49 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 20 mm | Application | | External grooving | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Turn-Groove Tools |
| Functional Width (WF) | 22.58 mm | Measurement Type | Metric |
| Functional Length (LF) | 150 mm |
Product Features
| Family Description | External toolholder for grooving, parting & turning, with high pressure coolant channels, monoblock type | Country of Origin | S.Korea |
| Remarks | When depth is deeper than (insert length 1.5 mm), 1 corner type is recommended. Torque:Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.000
