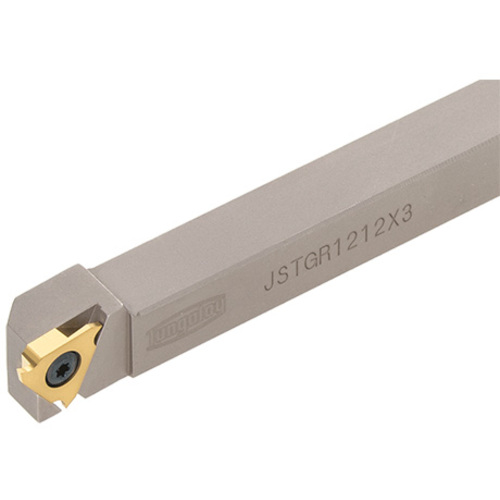

JSTGL1212X3
Grooving Toolholder ; 12 mm Shank Height ; 12 mm Shank Width ; 0.33 mm CW Min. ; 3 mm CW Max. ; 2.6 mm Max Depth ; Left Hand ; Steel
| Cutting Width Minimum (CWN) | 0.33 mm | Head Length (LH) | 18.5 mm |
| Cutting Width Maximum (CWX) | 3 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 2.6 mm | Application | | External grooving | |
| Shank Height (H) | 12 mm | Body Material | Steel |
| Shank Width (B) | 12 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 12 mm | Measurement Type | Metric |
| Functional Length (LF) | 120 mm |
Product Features
| Family Description | External grooving toolholders for small lathe | Country of Origin | JAPAN |
| Remarks | Recommend clamping torque: 1.2 Nm |
Shipping Info
Package Weight
0.362
