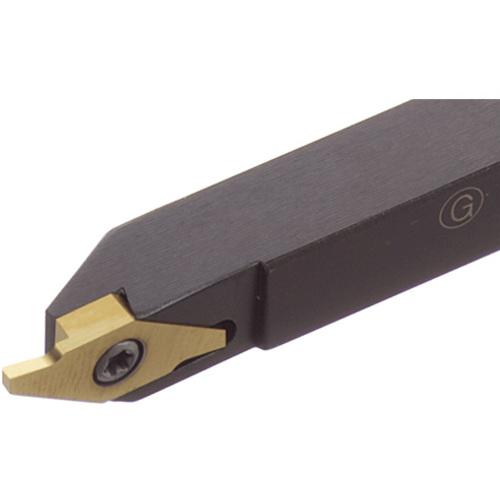

JSVGL082.5
Grooving Toolholder ; 1/2″ Shank Height ; 1/2″ Shank Width ; 0.013″ CW Min. ; 0.079″ CW Max. ; 0.244″ Max Depth ; Left Hand ; Steel

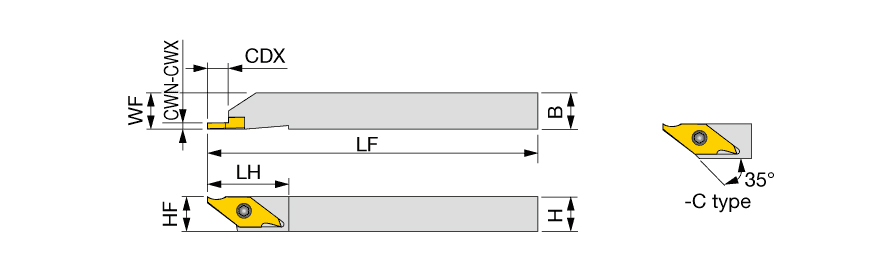

| Cutting Width Minimum (CWN) | 0.013″ | Head Length (LH) | 7/8″ |
| Cutting Width Maximum (CWX) | 0.079″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.244″ | Application | | External grooving | |
| Shank Height (H) | 1/2″ | Body Material | Steel |
| Shank Width (B) | 1/2″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1/2″ | Measurement Type | Inch |
| Functional Length (LF) | 5″ |
Product Features
| Family Description | External grooving toolholders for small lathe | Country of Origin | JAPAN |
| Remarks | Recommend clamping torque: 2.3 Nm |
Shipping Info
Package Weight
0.359
