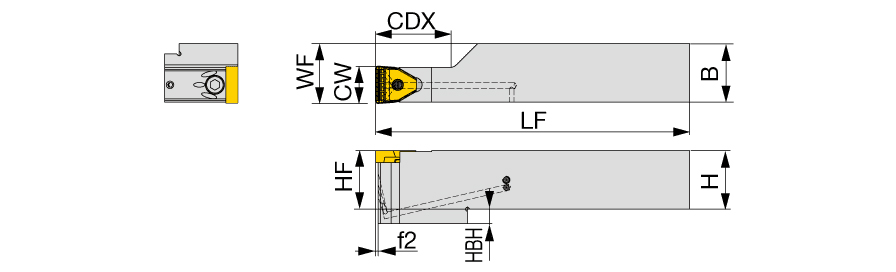

FPGR24-20T50
Grooving Toolholder ; 1-1/2″ Shank Height ; 1-1/2″ Shank Width ; 0.787″ CW Min. ; 0.787″ CW Max. ; 2.165″ Max Depth ; Right Hand ; Steel
| Cutting Width Minimum (CWN) | 0.787″ | Head Length (LH) | 3.028″ |
| Cutting Width Maximum (CWX) | 0.787″ | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 2.165″ | Application | | External grooving | |
| Shank Height (H) | 1-1/2″ | Body Material | Steel |
| Shank Width (B) | 1-1/2″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 1.52″ | Measurement Type | Inch |
| Functional Length (LF) | 10.92″ |
Product Features
| Family Description | Lever lock type for external wide grooving | Country of Origin | JAPAN |
Shipping Info
Package Weight
6.041
