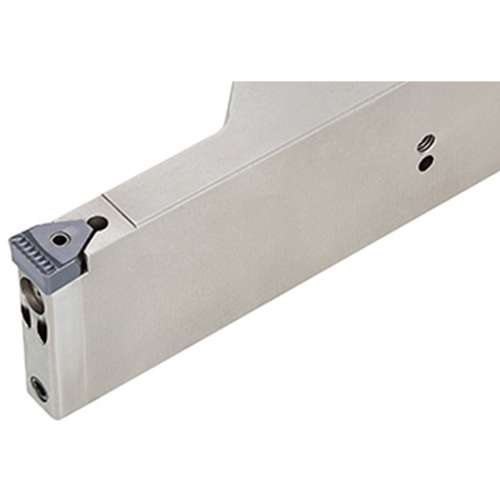

FPGR2525M-10T20
Grooving Toolholder ; 25 mm Shank Height ; 25 mm Shank Width ; 10 mm CW Min. ; 10 mm CW Max. ; 25 mm Max Depth ; Right Hand ; Steel

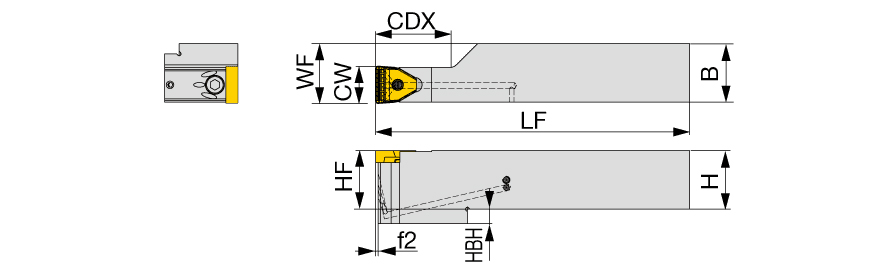

| Cutting Width Minimum (CWN) | 10 mm | Head Length (LH) | 43.6 mm |
| Cutting Width Maximum (CWX) | 10 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 25 mm | Application | | External grooving | |
| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 25.5 mm | Measurement Type | Metric |
| Functional Length (LF) | 155 mm |
Product Features
| Family Description | Lever lock type for external wide grooving | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.444
