FPGN10-10T20
Grooving Toolholder ; 5/8″ Shank Height ; 5/8″ Shank Width ; 0.394″ CW Min. ; 0.394″ CW Max. ; 0.984″ Max Depth ; Neutral ; Steel

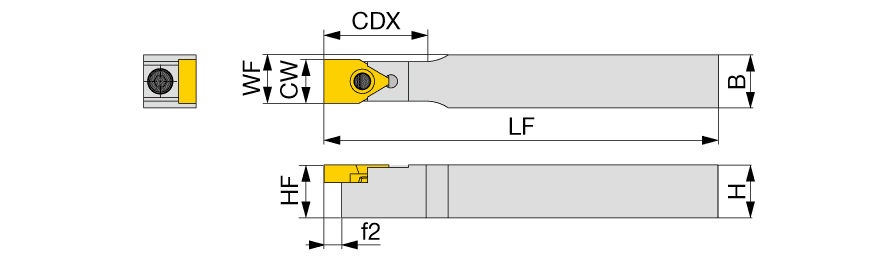

| Cutting Width Minimum (CWN) | 0.394″ | Head Length (LH) | 1.311″ |
| Cutting Width Maximum (CWX) | 0.394″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.984″ | Application | | External grooving | |
| Shank Height (H) | 5/8″ | Body Material | Steel |
| Shank Width (B) | 5/8″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 0.51″ | Measurement Type | Inch |
| Functional Length (LF) | 4.95″ |
Product Features
| Family Description | Lever lock type for external wide profile grooving | Country of Origin | JAPAN |
| Remarks | We can make special shape with forming insert (PSGB type) responding to customer's request. |
Shipping Info
Package Weight
0.509
