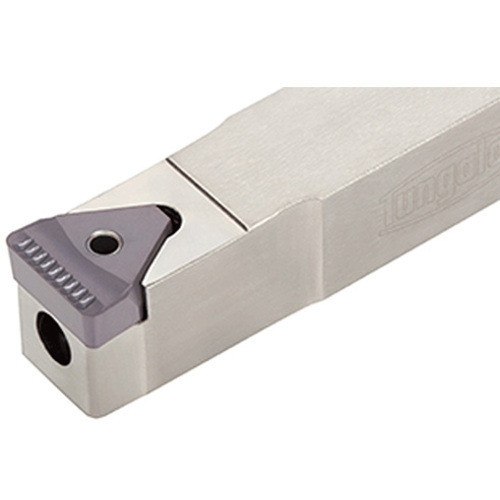

FPGN1616X-10T20
Grooving Toolholder ; 16 mm Shank Height ; 16 mm Shank Width ; 10 mm CW Min. ; 10 mm CW Max. ; 25 mm Max Depth ; Neutral ; Steel

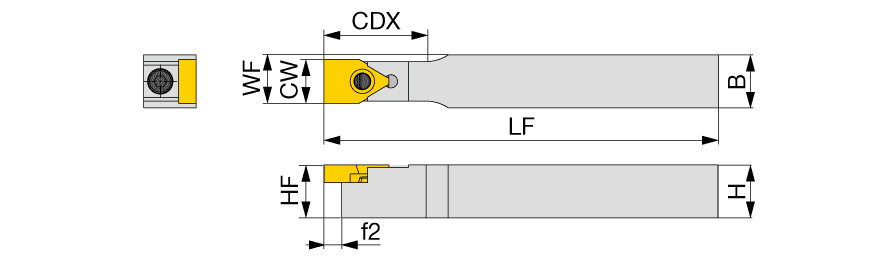

| Cutting Width Minimum (CWN) | 10 mm | Head Length (LH) | 32.6 mm |
| Cutting Width Maximum (CWX) | 10 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 25 mm | Application | | External grooving | |
| Shank Height (H) | 16 mm | Body Material | Steel |
| Shank Width (B) | 16 mm | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 13 mm | Measurement Type | Metric |
| Functional Length (LF) | 125 mm |
Product Features
| Family Description | Lever lock type for external wide profile grooving | Country of Origin | JAPAN |
| Remarks | We can make special shape with forming insert (PSGB type) responding to customer's request. |
Shipping Info
Package Weight
0.516
