JCTEL10-2T16
Grooving Toolholder ; 5/8″ Shank Height ; 5/8″ Shank Width ; 0.059″ CW Min. ; 0.098″ CW Max. ; 0.63″ Max Depth ; Left Hand ; Steel

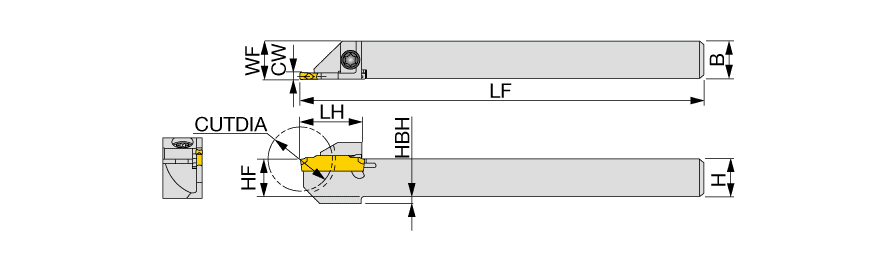

| Cutting Width Minimum (CWN) | 0.059″ | Head Length (LH) | 0.945″ |
| Cutting Width Maximum (CWX) | 0.098″ | Cutting Direction (HAND) | Left Hand |
| Cutting Depth Maximum (CDX) | 0.63″ | Application | | External grooving | Parting off | |
| Shank Height (H) | 5/8″ | Body Material | Steel |
| Shank Width (B) | 5/8″ | Tool Type | Parting & Grooving Tools |
| Functional Width (WF) | 0.629″ | Measurement Type | Inch |
| Functional Length (LF) | 4-3/4″ |
Product Features
| Family Description | External grooving & parting toolholders for small lathes | Country of Origin | Japan |
| Remarks | Torque: Recommended torque (Nm) for clamping |
Shipping Info
Package Weight
0.547
