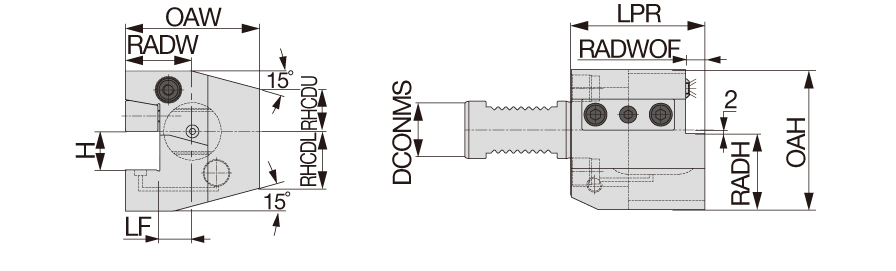

| Shank Height (H) | 25 mm | Application | | Straight shape | |
| Shank Width (B) | 25 mm | Body Material | Steel |
| Functional Length (LF) | 21 mm | Tool Type | VDI-DIN69880 |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
Product Features

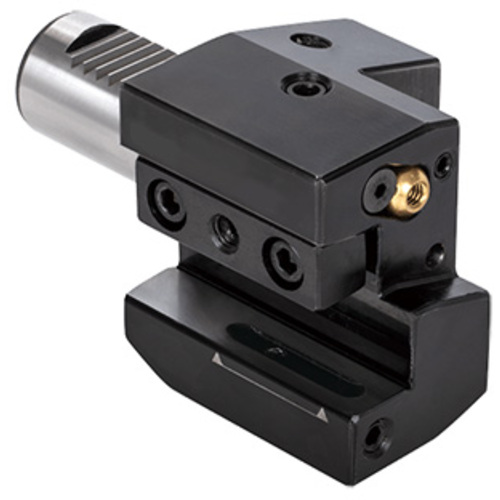

| Family Description | Axially oriented VDI adapters for square shank left-hand toolholders with hose-free direct coolant supply. Clamping screw on side, wedge clamping. | Country of Origin | CHINA |
| Remarks | Applicable for 8 MPa pressure coolant |
