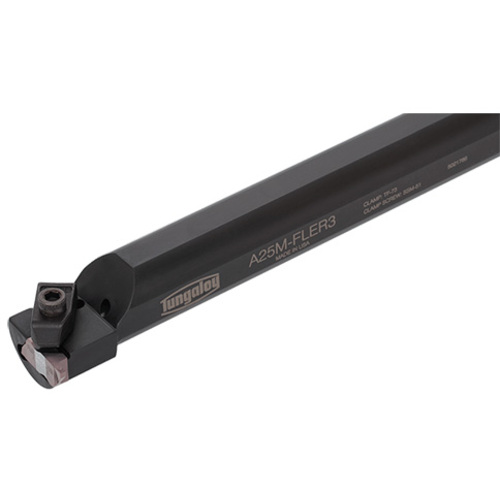

A25M-FLER3
Grooving Toolholder ; 25 mm Shank Dia. ; 1 mm CW Min. ; 3 mm CW Max. ; 4.07 mm Max Depth ; Right Hand ; Steel

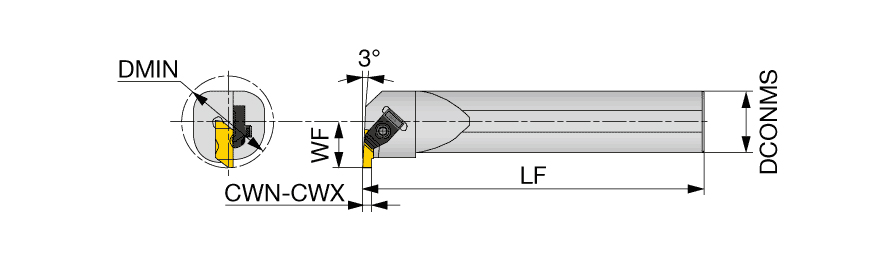

| Cutting Width Minimum (CWN) | 1 mm | Connection Diameter Machine Side (DCONMS) | 25 mm |
| Cutting Width Maximum (CWX) | 3 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 4.07 mm | Application | | Internal grooving | Internal Threading | |
| Minimum Bore Diameter (DMIN) | 34.9 mm | Body Material | Steel |
| Functional Width (WF) | 17.7 mm | Measurement Type | Metric |
| Functional Length (LF) | 300 mm |
Product Features
| Family Description | Internal toolholders for grooving & threading | Country of Origin | USA |
Shipping Info
Package Weight
2.381
