QSP32-5D-CHP
Parting Off Holder; 5.945″ OAL × 0.177″ CW Min. × 0.216″ CW Max. × 2.362″ Max Depth × 0.98″ OAH ; Steel

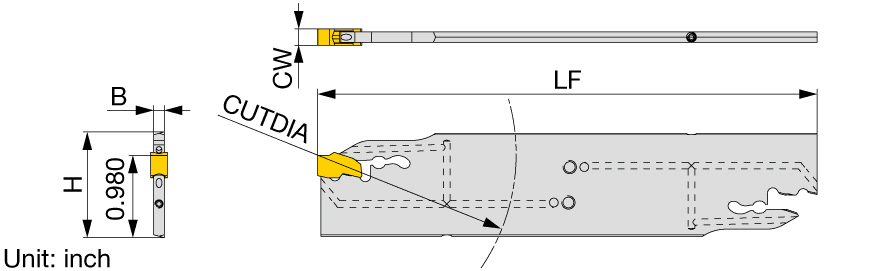

| Shank Height (H) | 1.26″ | Application | | External grooving | Parting off | |
| Shank Width (B) | 0.157″ | Body Material | Steel |
| Body Width (WB) | 0.157″ | Tool Type | Blades and adapters for Parting & Grooving |
| Cutting Width Minimum (CWN) | 0.177″ | Work Piece Parting Diameter Maximum (CUTDIA) | 4.724″ |
| Cutting Width Maximum (CWX) | 0.216″ | Cutting Direction (HAND) | Neutral |
| Overall Length (OAL) | 5.945″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 2.362″ | Insert Seat Size Code (SSC) | 5 |
| Overall Height (OAH) | 0.98″ | Functional Width (WF) | 0.197″ |
Product Features
| Family Description | Blade for external deep grooving and parting, with high pressure coolant capability | Country of Origin | JAPAN |
