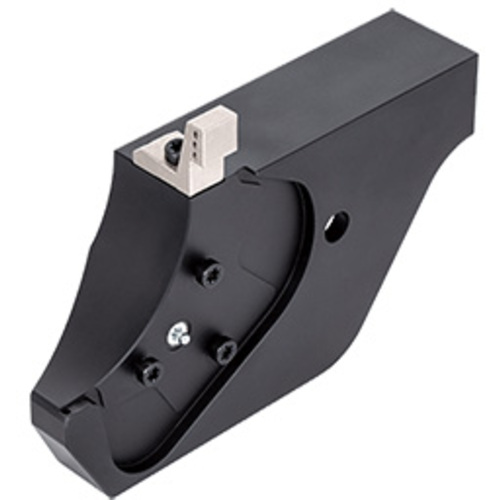

CHTBR12-52-CHP
Parting Off Holder; 4.098″ OAL × 1.968″ OAH ; Steel

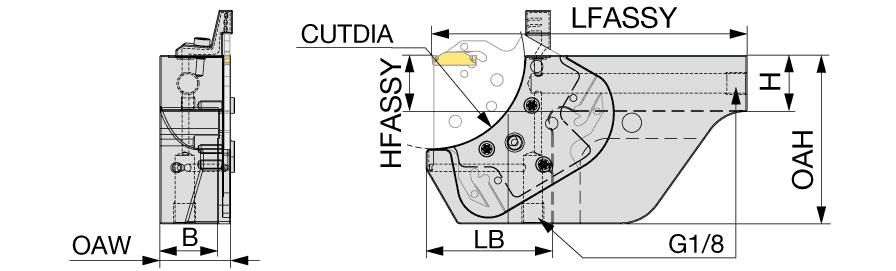

| Shank Height (H) | 3/4″ | Tool Type | Square Shanks |

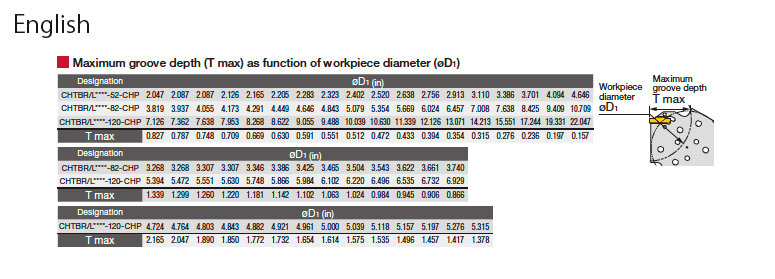

| Shank Width (B) | 0.77″ | Work Piece Parting Diameter Maximum (CUTDIA) | 2.047″ |
| Overall Length (OAL) | 4.098″ | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 1.968″ | Measurement Type | Inch |
| Application | | Parting off | | Tool Assembly Length (LTA) | 0.506″ |
| Body Material | Steel |
Product Features
| Family Description | Tool block for QSG/CHGP blade, with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | The blade clamping screw heads protrude out for as much as 3.1 mm over the insert cutting edge point. Maintain the clearance from the chucking device to avoid interference. |
Shipping Info
Package Weight
0.000
