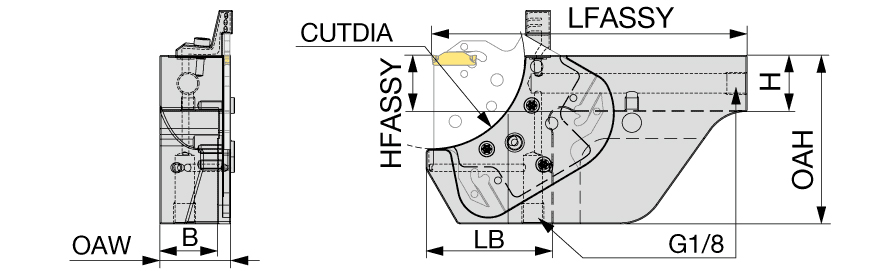

CHTBR3232-120-CHP
Parting Off Holder; 175.5 mm OAL × 100 mm OAH ; Steel
| Shank Height (H) | 32 mm | Tool Type | Square Shanks |
| Shank Width (B) | 32.5 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 120 mm |
| Overall Length (OAL) | 175.5 mm | Cutting Direction (HAND) | Right Hand |
| Overall Height (OAH) | 100 mm | Measurement Type | Metric |
| Application | | Parting off | | Tool Assembly Length (LTA) | 28 mm |
| Body Material | Steel |
Product Features
| Family Description | Tool block for QSG/CHGP blade, with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | The blade clamping screw heads protrude out for as much as 3.1 mm over the insert cutting edge point. Maintain the clearance from the chucking device to avoid interference. |
Shipping Info
Package Weight
0.000
