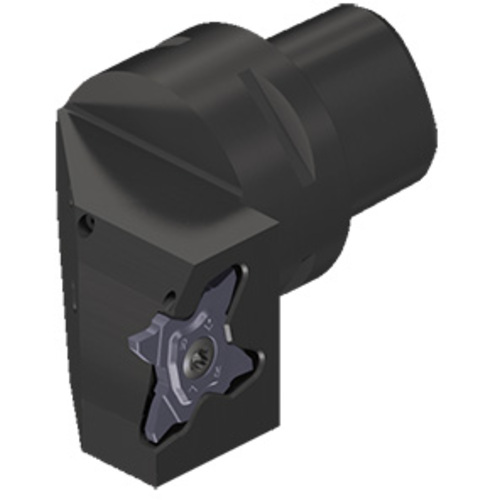

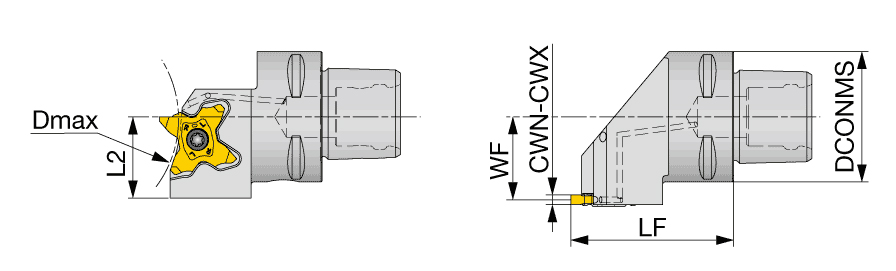

C4STCR27050-27-CHP
Parting Off Holder; 2.913″ OAL × 0.02″ CW Min. × 1/8″ CW Max. × 0.252″ Max Depth ; Steel
| Cutting Width Minimum (CWN) | 0.02″ | Work Piece Parting Diameter Maximum (CUTDIA) | 0.465″ |
| Cutting Width Maximum (CWX) | 1/8″ | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 2.913″ | Measurement Type | Inch |
| Cutting Depth Maximum (CDX) | 0.252″ | Insert Seat Size Code (SSC) | 27 |
| Application | | External grooving | Face contact interface | | Functional Width (WF) | 1.004″ |
| Body Material | Steel | Tool Assembly Length (LTA) | 1.968″ |
Product Features
| Family Description | TungCap External grooving and threading toolholder with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | Applicable for 14 MPa coolant For Dmax, click on "More Info". |
